Details

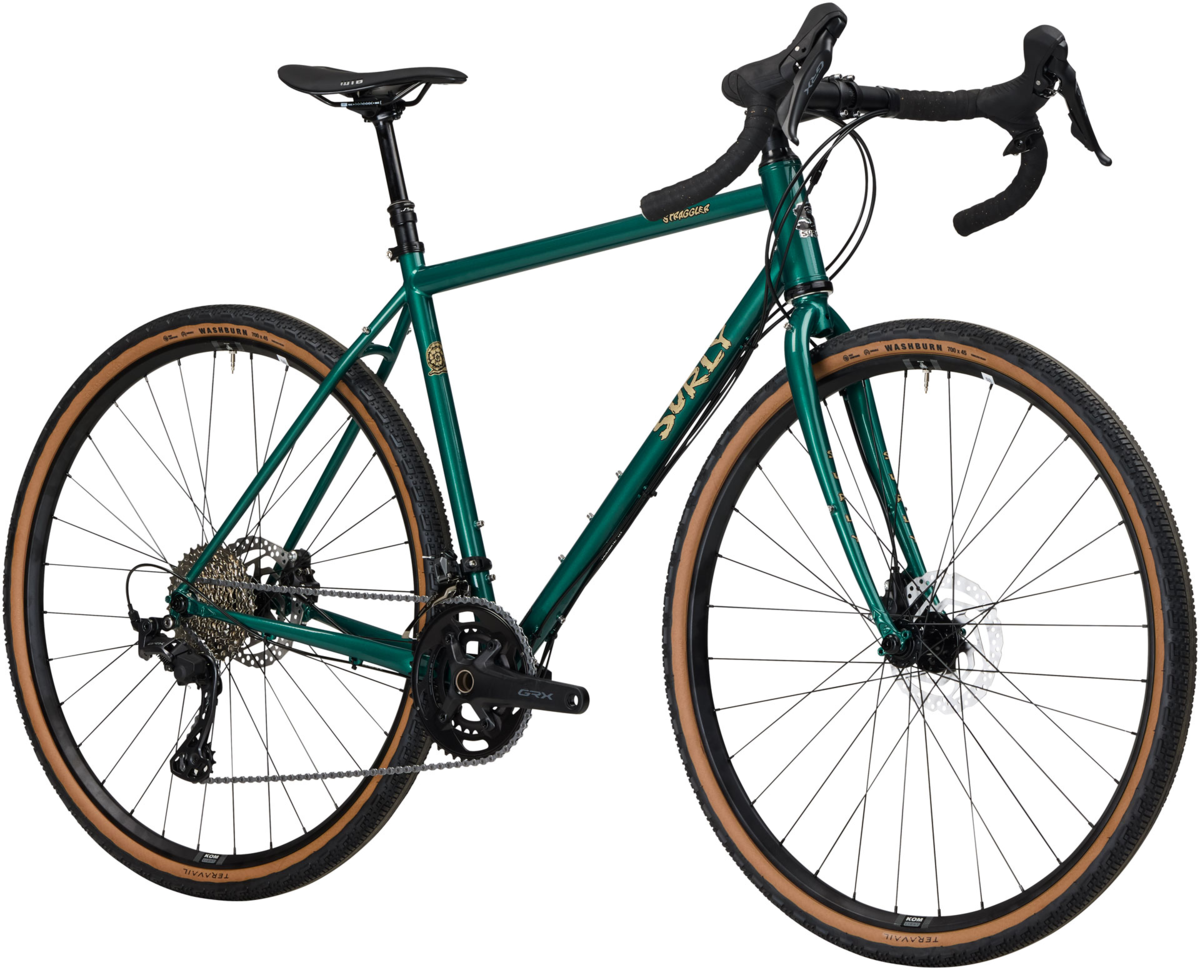

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, modern flat-mount controls, and zero ego.
It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready to plow through challenges, not obstacles.
Straggler’s capabilities extend into some light cargo setups, so riders can do double-duty when hitting the trails and running around town.
- 650b or 700c wheels (varies by frame size) for optimized rider fit
- Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames
- Updated thru-axle dropouts for improved stiffness and handling
- Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
- 50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain
Sizes: 46cm – 52cm: 650b
Sizes: 54cm – 64cm: 700c
| Frame Size | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|
| Effective top tube (cm / in) | 56.5 / 22.24 | 58.0 / 22.83 | 59.5 / 23.43 | 61.0 / 24.02 | 62.5 / 24.61 |
| Standover (cm / in) | 79.2 / 31.17 | 80.9 / 31.87 | 82.9 / 32.63 | 84.6 / 33.31 | 86.5 / 34.06 |
| Reach (cm / in) | 39.6 / 15.60 | 40.1 / 15.78 | 40.8 / 16.07 | 41.2 / 16.22 | 42.1 / 16.57 |
| Stack (cm / in) | 54.9 / 21.62 | 56.7 / 22.33 | 59.1 / 23.27 | 60.9 / 23.98 | 62.8 / 24.73 |
| Seat tube length (cm / in) | 54.0 / 21.26 | 56.0 / 22.05 | 58.0 / 22.83 | 60.0 / 23.62 | 62.0 / 24.41 |
| Headtube length (cm / in) | 10.7 / 4.21 | 12.1 / 4.76 | 14.6 / 5.75 | 16.5 / 6.50 | 18.5 / 7.28 |
| Headtube angle (degree) | 72 | 72 | 72 | 72 | 72 |
| Seat tube angle (degree) | 73 | 72.5 | 72.5 | 72 | 72 |
| BB drop (cm / in) | 7.2 / 2.83 | 7.2 / 2.83 | 7.2 / 2.83 | 7.2 / 2.83 | 7.2 / 2.83 |
| Chainstay length (cm / in) | 42.5 / 16.73 | 43.0 / 16.93 | 43.0 / 16.93 | 43.0 / 16.93 | 43.0 / 16.93 |
| Fork length axle to crown (cm / in) | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 |
| Fork offset (cm / in) | 4.4 / 1.73 | 4.4 / 1.73 | 4.4 / 1.73 | 4.4 / 1.73 | 4.4 / 1.73 |
| Wheelbase (cm / in) | 101.7 / 40.02 | 103.2 / 40.63 | 104.7 / 41.22 | 105.7 / 41.61 | 107.2 / 42.20 |
| Crank arm length (cm / in) | 17.2 / 6.79 | 17.5 / 6.89 | 17.5 / 6.89 | 17.5 / 6.89 | 17.5 / 6.89 |
| Handlebar width (cm / in) | 42.0 / 16.54 | 44.0 / 17.32 | 44.0 / 17.32 | 46.0 / 18.11 | 46.0 / 18.11 |
| Recommended rider height (cm / in) | 170.0–180.0 / 67–71 | 175.0–185.0 / 69–73 | 180.0–191.0 / 71–75 | 185.0–196.0 / 73–77 | 191.0–201.0 / 75–79 |
| Stem length (cm / in) | 10.0 / 3.94 | 10.0 / 3.94 | 12.0 / 4.72 | 12.0 / 4.72 | 12.0 / 4.72 |
Specs
| Frame | 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
|---|---|
| Fork | Straggler, 12x100mm thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated |
| Rims | WTB KOM Light 25mm, TCS 2.0, 650b, 32h (46cm-52cm), WTB KOM Light 25mm, TCS 2.0, 700c, 32h (54cm and up) |
| Hubs | Novatec 12x100mm Thru-axle, 6-Bolt / Novatec 12x142mm Thru-axle, 6-Bolt |
| Spokes | 14G Black |
| Tires | Teravail Washburn 650b x 47 Durable (46cm - 52cm), Teravail Washburn 700c x 45 Durable (54cm and up) |
| Bottom Bracket | Shimano BB-RS501 |
| Crankset | Shimano GRX RX610, 46/30T |
| Shifters | Shimano GRX RX610 |
| Front Derailleur | Shimano GRX RX820 |
| Rear Derailleur | Shimano GRX RX820 |
| Cassette/Freewheel | Shimano HG710, 11-36t, 12spd |
| Chain | KMC X12 EPT Anti-Rust |
| Brakes | Front: Shimano GRX RX410 Rear: Shimano GRX RX410 |
| Rotors | Shimano RT26 160/160mm, 6-Bolt |
| Brake Levers | Shimano GRX RX610 |
| Handlebars | Salsa Cowchipper |
| Tape/Grips | Black Cork |
| Stem | TranzX JD-ST123A |
| Headset | FSA Orbit ITA |
| Seatpost | Trans-X JD-YSP38J Dropper Post, 90mm travel |
| Saddle | WTB Gravelier Medium |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Subtropic Algae / 58cm / 700c | 708752515345 | BK01495 | 210000038313 |
